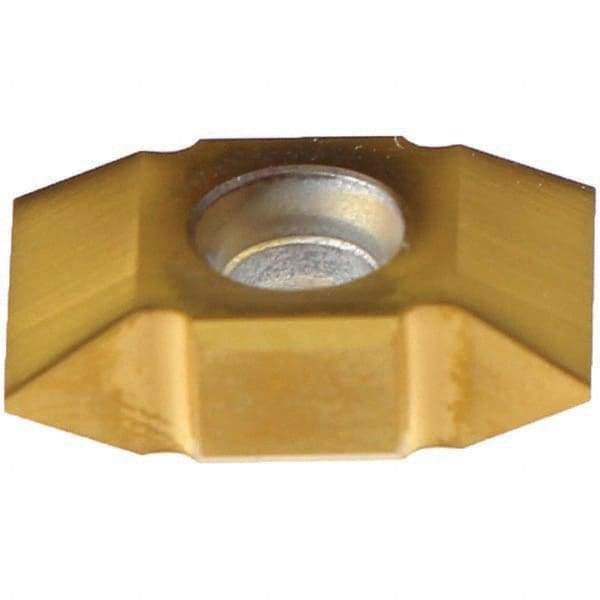

Emuge - 8 TPI, Internal Thread, NPT Standard, GF Grade Thread Mill Insert - Carbide, TiN Coating
Item #: 47940143
Brand: Emuge
Model #: GF643205.9680
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | GF |
| Thread Type | Internal |
| Thread Standard | NPT |
| Threads Per Inch | 8 |
| Length (mm) | 13.50 |
| Length (Decimal Inch) | 0.5310 |
| Material Grade | Submicron |
| Material | Carbide |
| Coating | TiN |
| Width (Decimal Inch) | 0.3350 |
| Width (mm) | 8.50 |
