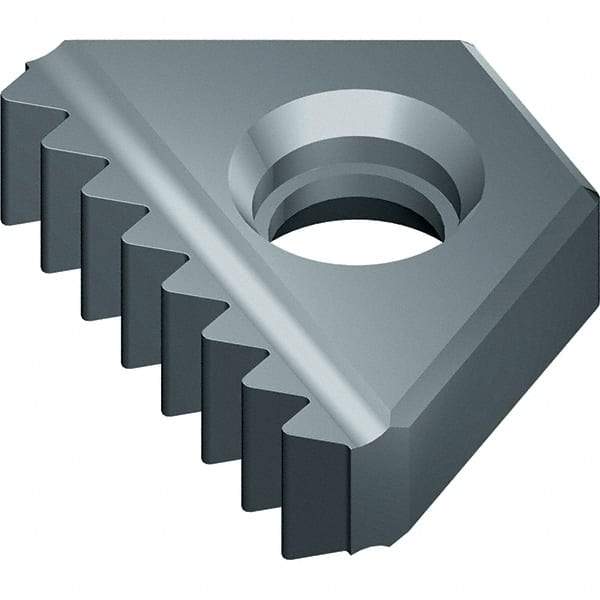

Vargus - 4.5 TPI, Internal/External Thread, Whitworth Standard, 6BEI VBX Grade Thread Mill Insert - Carbide, TiCN Coating
Item #: 47507116
Brand: Vargus
Model #: 086-00700
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | 6BEI |
| Thread Type | Internal/External |
| Thread Standard | Whitworth |
| Threads Per Inch | 4.5 |
| Length (mm) | 38.5 |
| Length (Decimal Inch) | 1.5160 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VBX |
| Material | Carbide |
| Coating | TiCN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 22.23 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
