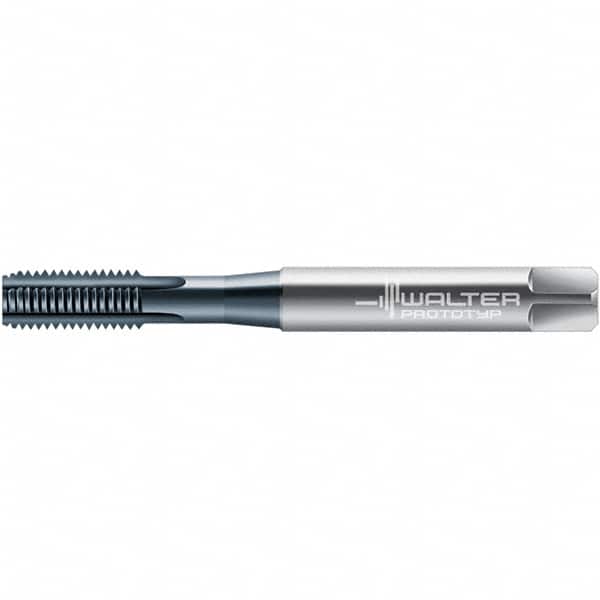

Walter-Prototyp - M6x1.00 DIN 371 6HX 4 Flute TiCN Finish High Speed Steel Straight Flute Machine Tap - Bottoming, Right Hand Thread, 80mm OAL, 15mm Thread Length, Through Coolant
Item #: 47316518
Brand: Walter-Prototyp
Model #: 6826955
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | DIN 371 |
| Overall Length (Decimal Inch) | 3.15000 |
| Overall Length (mm) | 80.00 |
| Material Grade | TICN |
| Series/List | E2031456 |
| Thread Length (Decimal Inch) | 0.5910 |
| Thread Length (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (mm) | 6.00 |
| Square Length (Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.1930 |
| Square Size (mm) | 4.90 |
| Material Application | 0, K, N |
| Material Application2 | 0, K, N |
