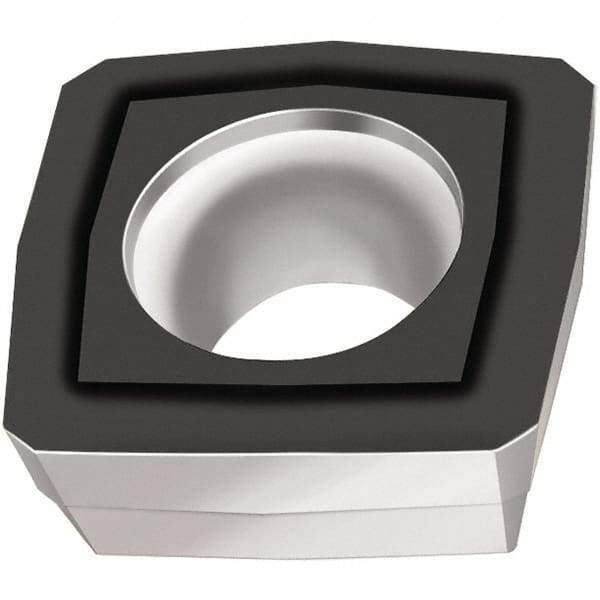

Walter - A57 Grade WKP25S Indexable Drill Insert - TiCN+Al2O3+(TiCN) Finish, 7.8mm Inscribed Circle
Item #: 47302427
Brand: Walter
Model #: 6863842
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Inscribed Circle (mm) | 7.80 |
| Inscribed Circle (Decimal Inch) | 0.3070 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.000 |
| Length (mm) | 7.8 |
| Length (Decimal Inch) | 0.3070 |
| Relief Angle | 14 |
| Coating | TiCN+Al2O3+(TiCN) |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | A57 |
