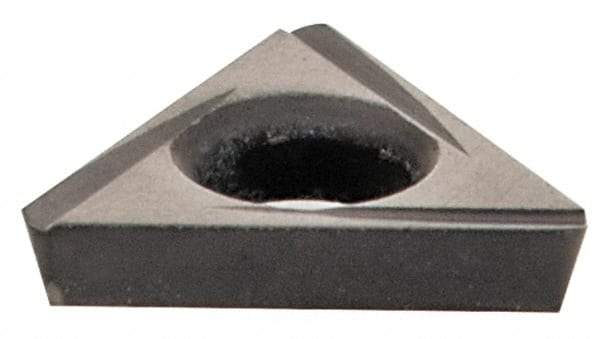

Kennametal - TDHH1280751 Grade KCU10 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 0.1598" Inscr Circle, 3/64" Thick, 1/64" Corner Radius
Item #: 46867529
Brand: Kennametal
Model #: 4053341
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TDHH |
| Insert Size | 1280751 |
| Material | Carbide |
| Length (mm) | 7.04 |
| Length (Decimal Inch) | 0.2770 |
| Inscribed Circle (Decimal Inch) | 0.1598 |
| Thickness (Inch) | 3/64 |
| Thickness (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Hole Diameter (mm) | 2.39 |
| Hole Diameter (Decimal Inch) | 0.0941 |
| ISO Number | TDHH07T1204L |
| Relief Angle | 15 |
| Coating Process | PVD |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Triangle |
