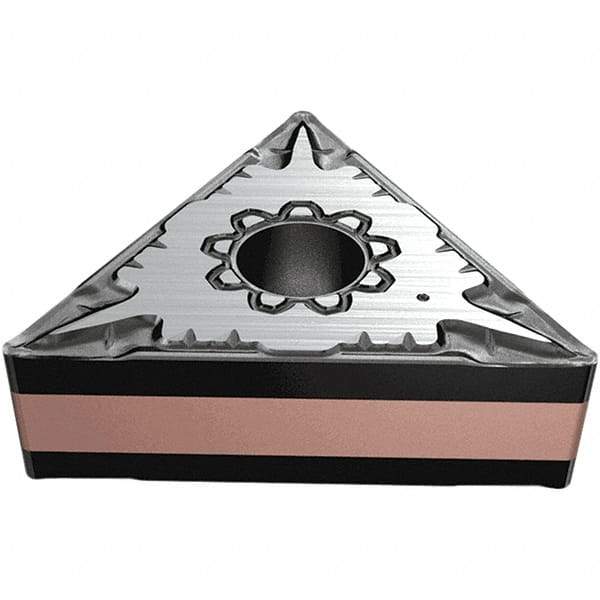

Iscar - TNMG333 F3M Grade IC806 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 9.52mm Inscr Circle, 4.76mm Thick, 1.2mm Corner Radius
Item #: 46676094
Brand: Iscar
Model #: 5568852
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC806 |
| Coating | AlTiN |
| Chip Breaker | F3M |
| ISO Number | TNMG 333-F3M |
| Rake | Positive |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5568852 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Triangle |
