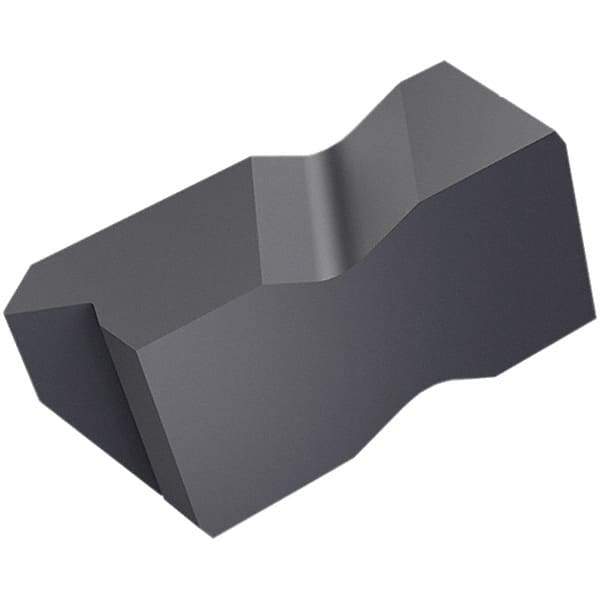

Iscar - FLDC3 Grade IC908, Internal/External API Round Threading Insert - 11-1/2 TPI Ext Pitch, 11-1/2 TPI Int Pitch, Left Hand Insert, TiAlN Finish, Carbide
Item #: 46638714
Brand: Iscar
Model #: 2419869
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLDC |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Insert Hand | Left Hand |
| Thread Standard | API Round |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Internal Pitch/TPI | 11.5 TPI |
| External Pitch/TPI | 11.5 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | FLDC-3-115VL75 IC908 |
| Thickness (mm) | 8.74 |
| Thickness (Decimal Inch) | 0.3440 |
| Series | Notch-Grip |
| Included Angle of Threading Tip | 60 |
| Rake | Negative |
| Rake Angle | 3 |
| Blade Width (mm) | 4.95 |
| Blade Width (Decimal Inch) | 0.1950 |
| Manufacturers Catalog Number | 2419869 |
