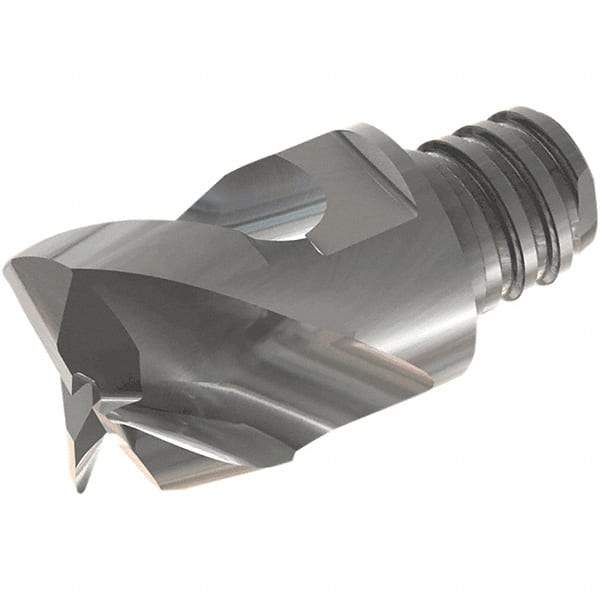

Iscar - MM EA Grade IC08 Carbide End Milling Tip Insert - Uncoated, 3 Flutes, 3/4" Cutting Diam, 0.47" Depth of Cut, 1" Extension, 1/8" Cnr Rad, 45° Helix
Item #: 45396710
Brand: Iscar
Model #: 5622743
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EA |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Manufacturer's Grade | IC08 |
| Depth of Cut (Decimal Inch) | 0.4700 |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Milling Tip Full Description | Slotting |
| Corner Radius (Decimal Inch) | 0.1250 |
| Extension From Holder (Decimal Inch) | 1.0000 |
| Thread Size | T12 |
| Helix Angle | 45 |
