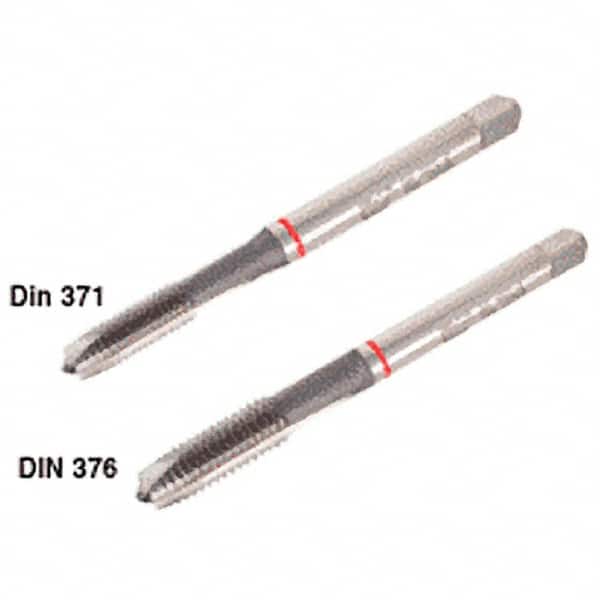

Iscar - M7x1.00 Metric Coarse 6H 3 Flute High Speed Steel Straight Flute Machine Tap - Plug, Right Hand Thread, 80mm OAL, 17mm Thread Length, Oversize
Item #: 45374402
Brand: Iscar
Model #: 4445172
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M7x1.00 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (mm) | 80.00 |
| Oversize | No |
| Series/List | TP8 |
| Thread Length (mm) | 17.00 |
| Shank Diameter (mm) | 7.00 |
| Square Size (mm) | 5.50 |
| Material Application | Hardened Steel; High Temperature Alloys |
