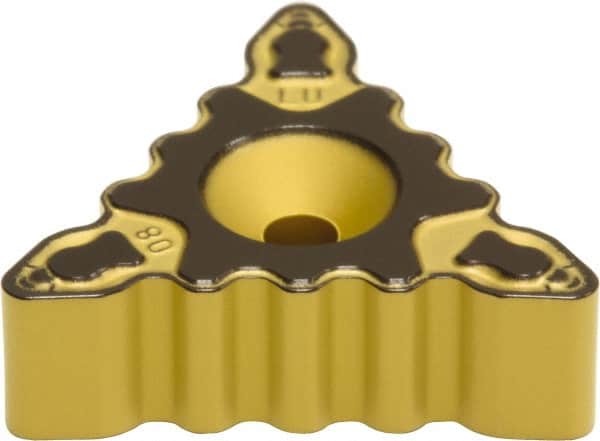

Sumitomo - TRM551712 LU Grade AC700G Carbide Turning Insert - TiC Finish, 55° Triangle, 0.394" Inscr Circle, 0.197 Thick, 3/64" Corner Radius
Item #: 45233871
Brand: Sumitomo
Model #: 1MDYABA
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TRM |
| Insert Size | 551712 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.1970 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | AC700G |
| Coating | TiC |
| Chip Breaker | LU |
| Hole Diameter (Decimal Inch) | 0.0840 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 55 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
