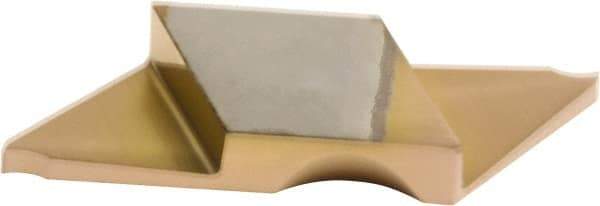

Sumitomo - CTL121005 AC530U Grade, 0.0394" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.002" Cnr Rad, TiAlN/AlCrN Coated, Double End
Item #: 45207032
Brand: Sumitomo
Model #: 18HM714
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CTL |
| Insert Size | 121005 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Material Grade | C5/C55A |
| Manufacturer's Grade | AC530U |
| Coating | TiAlN/AlCrN |
| Series | Sumi-Grip Jr. |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.0508 |
| Insert Holding Method | Clamp |
| Overall Width (mm) | 2.50 |
| Overall Width (Decimal Inch) | 0.0984 |
