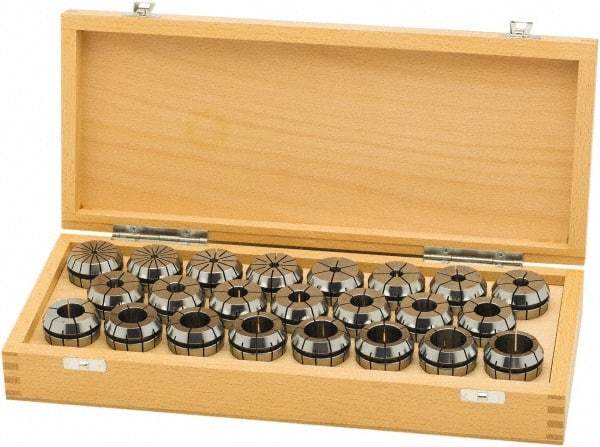

Parlec - 23 Piece, 4mm to 26mm Capacity, ER Collet Set - 0.0002" TIR, Increments of 0.0394", Series ER40
Item #: 43905702
Brand: Parlec
Model #: 5UMER40-SM023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Number of Pieces | 23 |
| Minimum Collet Capacity (mm) | 4.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.1575 |
| Maximum Collet Capacity (mm) | 26.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.0236 |
| Size Increments (Decimal Inch) | 0.0394 |
| Size Increments (mm) | 1.00 |
| TIR (Decimal Inch) | 0.000200 |
| Size 1 (mm) | 4.00; 5.00; 6.00; 7.00; 8.00; 9.00; 10.00; 11.00; 12.00; 13.00; 14.00; 15.00; 16.00; 17.00; 18.00; 19.00; 20.00; 21.00; 22.00; 23.00; 24.00; 25.00; 26.00 |
| Size 1 (Decimal Inch) | 0.1575; 0.1969; 0.2362; 0.2756; 0.3150; 0.3543; 0.3937; 0.4331; 0.4724; 0.5118; 0.5512; 0.5906; 0.6299; 0.6693; 0.7087; 0.7480; 0.7874; 0.8268; 0.8661; 0.9055; 0.9449; 0.9843; 1.0236 |
| PSC Code | 5136 |
