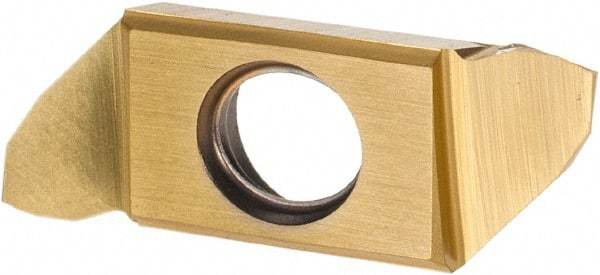

Iscar - 22BR10SCIR B Grade IC1008, 0.51mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiAlN/TiN Finish
Item #: 42736371
Brand: Iscar
Model #: 6404229
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCIR |
| Insert Size | 22BR10 |
| Material | Carbide |
| Cutting Width (mm) | 0.51 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Chipbreaker | B |
| Multi-Use Tool | Yes |
| Multi-Use Application | Back Turning |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Series | Swisscut |
| Rake Angle | 7 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1180 |
