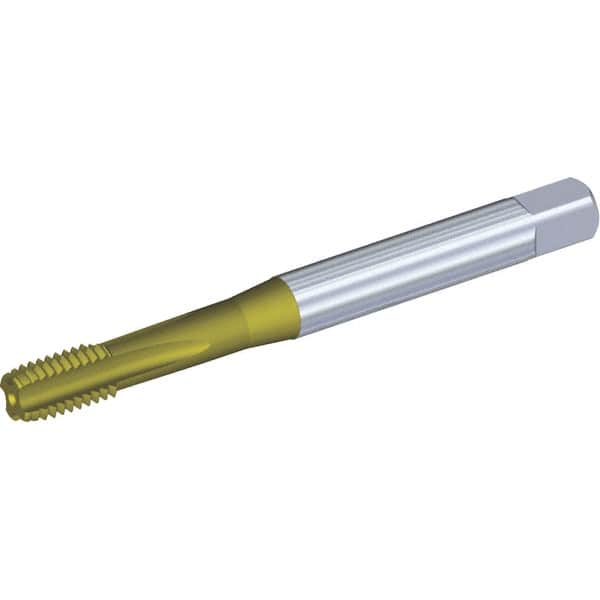

Kennametal - 1/4-20 UNC 3BX 4 Flute TiCN/TiN Finish Powdered Metal Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 80mm OAL, 13mm Thread Length, Oversize, Through Coolant
Item #: 42693184
Brand: Kennametal
Model #: 5212286
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 3BX |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 3.14960 |
| Overall Length (mm) | 80.00 |
| Oversize | No |
| Material Grade | KP6525 |
| Series/List | T641 |
| Thread Length (Decimal Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Tapping Depth (mm) | 30 |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.00 |
| Material Application | Cast Aluminum; Cast Iron; Steel |
