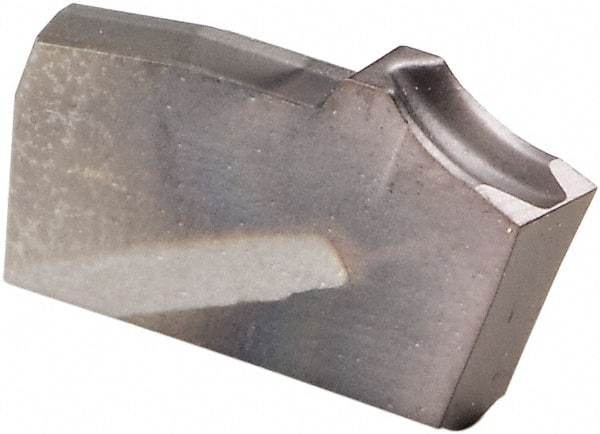

Kennametal - A2022 CM KCU25 Grade, 0.0866" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, AlTiN Coated, Single End
Item #: 42228973
Brand: Kennametal
Model #: 4178188
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A2 |
| Insert Size | 022 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CM |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 10.50 |
| Overall Length (Decimal Inch) | 0.4134 |
| Cutting Height (mm) | 4.66 |
| Cutting Height (Decimal Inch) | 0.1835 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
