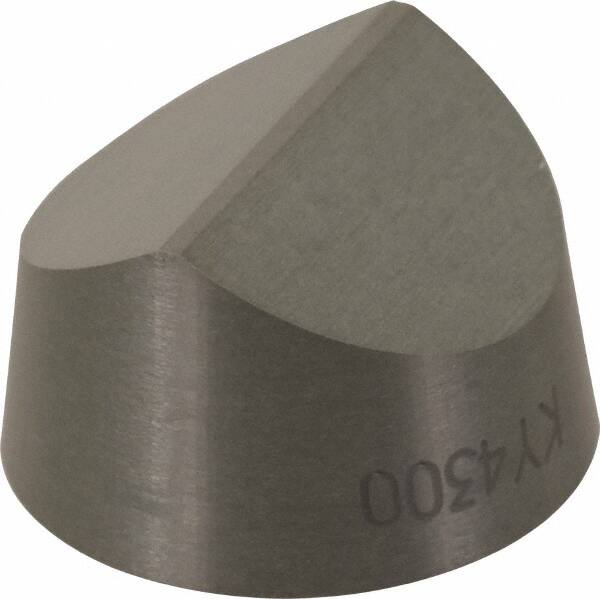

Kennametal - RCGV45 T0420 Grade KY4300 Ceramic Turning Insert - Al2O3/SiCw Finish, Round, 1/2" Inscr Circle, 5/16" Thick
Item #: 40912248
Brand: Kennametal
Model #: 1198499
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGV |
| Insert Size | 45 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | KY4300 |
| Coating | Al2O3/SiCw |
| Material Grade | C4 |
| Chip Breaker | T0420 |
| Rake | Positive |
| Relief Angle | 7 |
| Series | KENDEX |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp |
| Shape | Round |
