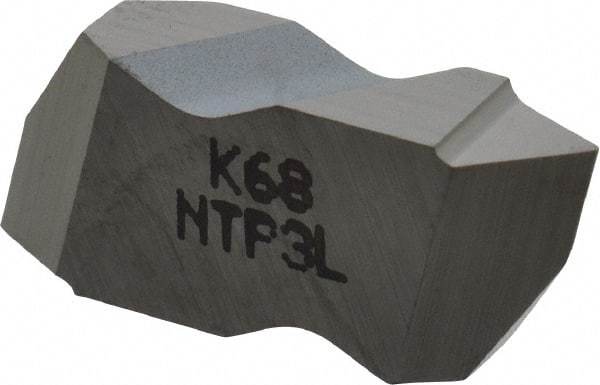

Kennametal - NTP3 Grade K68, Internal/External Partial Profile 60° Threading Insert - 1.25 to 40mm & 6 to 20 TPI Ext Pitch, 20 to 50mm & 5 to 12 TPI Int Pitch, Left Hand Insert, Uncoated, Carbide
Item #: 40623571
Brand: Kennametal
Model #: 1113511
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NTP |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | C3 |
| Manufacturer's Grade | K68 |
| Internal Pitch/TPI | 2.00-5.00 mm; 5-12 TPI |
| External Pitch/TPI | 1.25-4.00 mm; 6-20 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Corner Radius (mm) | 0.17 |
| Corner Radius (Decimal Inch) | 0.0065 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Rake | Positive |
| Tip to Top of Insert (mm) | 2.49 |
| Tip to Top of Insert (Decimal Inch) | 0.0980 |
