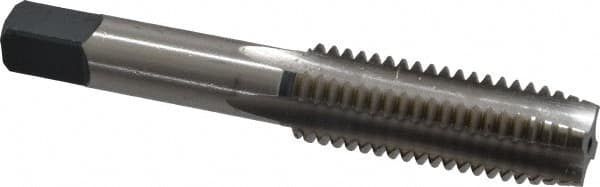

Cleveland - 5/8-11 UNC 3B 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 3.813" OAL, 1.09" Thread Length, H3 Limit, Oversize
Item #: 40206161
Brand: Cleveland
Model #: C54780
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 5/8-11 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 3.81300 |
| Oversize | No |
| Series/List | 1002 |
| Thread Length (Decimal Inch) | 1.0900 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless |
