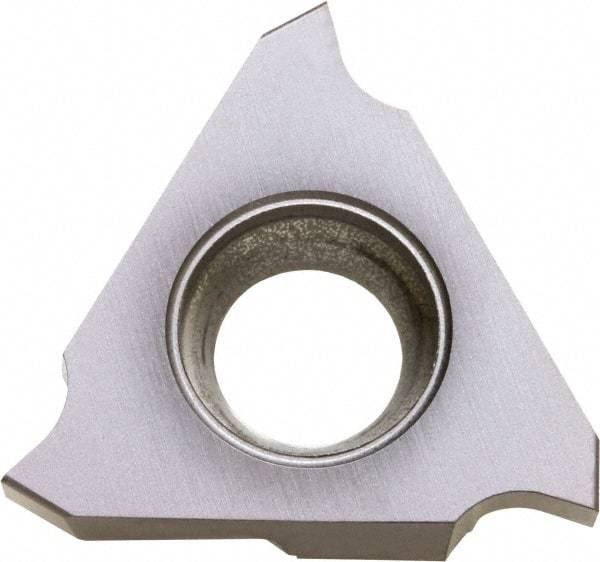

Kyocera - 43GBA Grade KPD010, 1.25mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 2mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius
Item #: 40155210
Brand: Kyocera
Model #: 8810793
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 1.25 |
| Cutting Width (Decimal Inch) | 0.0492 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | KPD010 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.1000 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Series | GBA |
| Manufacturers Catalog Number | GBA43R125-010 |
| Insert Thickness (Decimal Inch) | 0.1870 |
