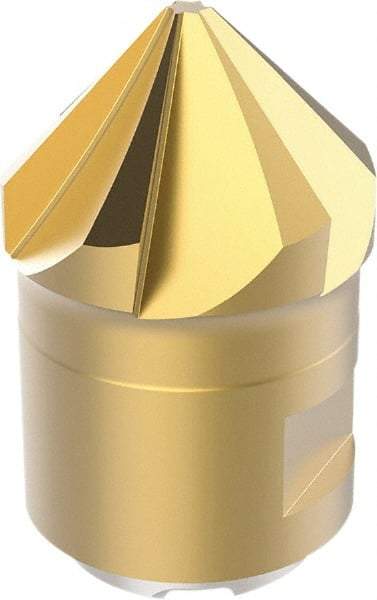

Seco - MP16 Grade F40M Carbide Chamfer Milling Tip Insert - TiAIN/TiN Finish, 6 Flutes, 1.95mm Cutting Diam, 6.5mm Depth of Cut, 23.8mm Extension
Item #: 39682455
Brand: Seco
Model #: 02880962
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster Plus |
| Milling Tip Style | MP16 |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 1.95 |
| Cutting Diameter (Decimal Inch) | 0.0768 |
| Material Grade | C4/C5 |
| Manufacturer's Grade | F40M |
| Depth of Cut (mm) | 6.50 |
| Number of Flutes | 6 |
| Coating | TiAIN/TiN |
| Coating Process | PVD |
| Cutting Width (mm) | 1.95 |
| Extension From Holder (mm) | 23.80 |
| Lead Angle | 45 |
| Included Angle | 90 |
