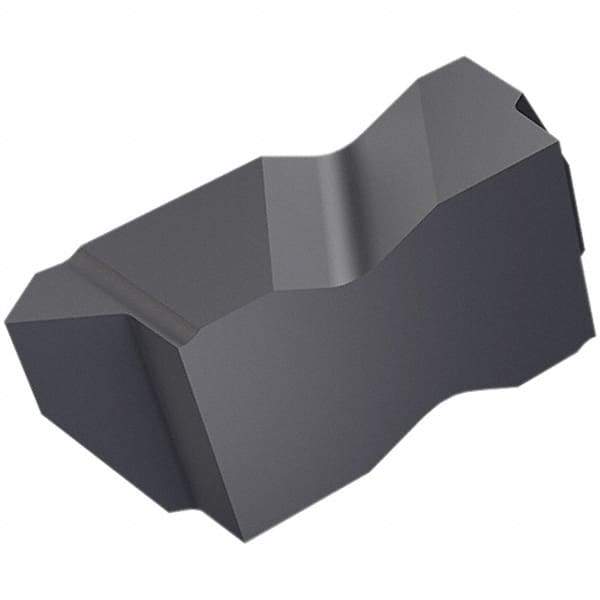

Iscar - FLTK2R Grade IC908, Internal/External ISO & UN Threading Insert - 14 to 44 TPI Ext Pitch, 12 to 24 TPI Int Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 38635819
Brand: Iscar
Model #: 2413311
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLTK |
| Insert Size | 2R |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO; UN |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Internal Pitch/TPI | 12-24 TPI |
| External Pitch/TPI | 14-44 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | FLTK-2R IC908 |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Corner Radius (mm) | 0.05 |
| Maximum Corner Radius (Decimal Inch) | 0.0020 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Series | Notch-Grip |
| Included Angle of Threading Tip | 60 |
| Rake | Negative; Positive |
| Rake Angle | 5 |
| Blade Width (mm) | 3.81 |
| Blade Width (Decimal Inch) | 0.1500 |
| Manufacturers Catalog Number | 2413311 |
