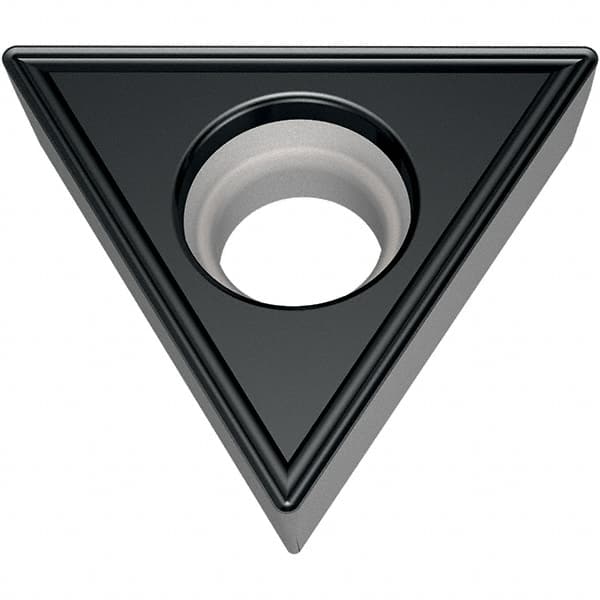

Walter - TCMT FP6 Grade WPP20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 60° Triangle, 9.53mm Inscr Circle, 3.97mm Thick, 0.4mm Corner Radius
Item #: 38580650
Brand: Walter
Model #: 6730404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WPP20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | FP6 |
| Insert Length (Decimal Inch) | 0.6500 |
| OverallLength (mm) | 16.50 |
| Overall Length (Decimal Inch) | 0.6500 |
| Insert Length (mm) | 16.4978 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | TCMT16T304-FP6 WPP20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WPP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6730404 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | TCMT-FP6 |
| Maximum Depth of Cut (mm) | 16.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Cutting Width (mm) | 16.50 |
| Shape | Triangular |
