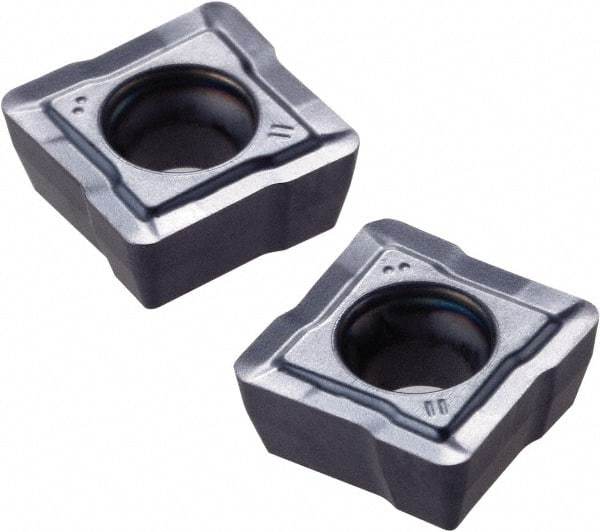

OSG - XCMT145612 Grade XP1010 Carbide Indexable Drill Insert - TiAlN Finish, Square, 15.58mm Inscribed Circle
Item #: 38227609
Brand: OSG
Model #: 7823173
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | XCMT |
| Insert Size | 145612 |
| Material | Carbide |
| Manufacturer's Grade | XP1010 |
| Inscribed Circle (mm) | 15.58 |
| Thickness (mm) | 5.60 |
| Corner Radius (mm) | 1.20 |
| Shape | Square |
| Width (mm) | 15.58 |
| Relief Angle | 8 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
