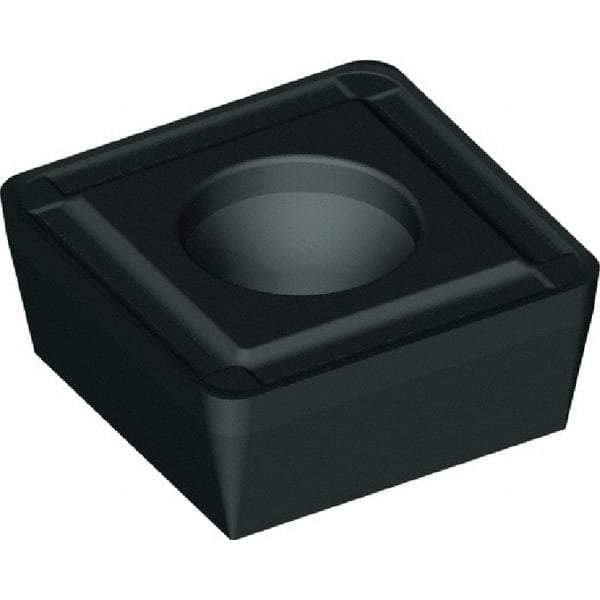

Kennametal - SP..X..050204 HP Grade KC7140 Carbide Indexable Drill Insert - TiN Finish, Square, 2.25mm Inscribed Circle
Item #: 37892692
Brand: Kennametal
Model #: 5692801
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | SP..X.. |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | KC7140 |
| Inscribed Circle (mm) | 2.25 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (mm) | 0.40 |
| Shape | Square |
| Length (mm) | 5.43 |
| Hole Diameter (mm) | 2.25 |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Included Angle | 90 |
| Coating | TiN |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | HP |
