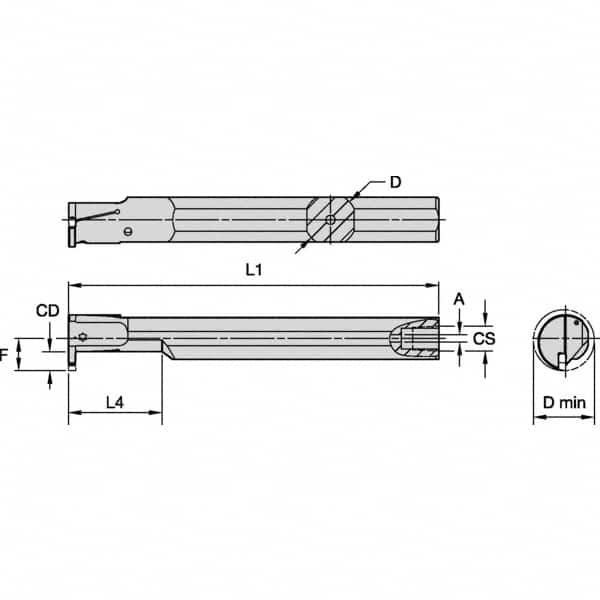

Kennametal - 1-1/4" Min Bore Diam, 200mm OAL, 1" Shank Diam, A-EVE Indexable Boring Bar - 2" Max Bore Depth, EG0200M02P02 Insert
Item #: 37736717
Brand: Kennametal
Model #: 5980671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (Inch) | 1-1/4 |
| Minimum Bore Diameter (Decimal Inch) | 1.2500 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 2 |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | EG0200M02P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Rake | Neutral |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Rake Angle | 0 |
| Toolholder Material | Steel |
