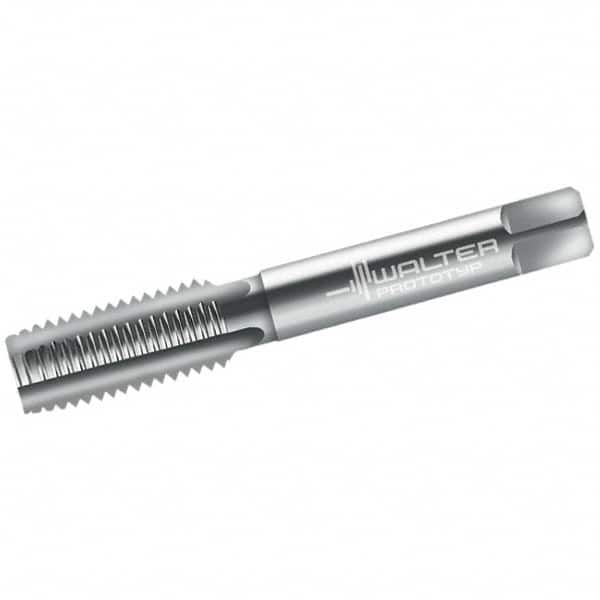

Walter-Prototyp - M6x1.00 Metric 6H 3 Flute Bright Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 56mm OAL, 15mm Thread Length, Oversize
Item #: 36338291
Brand: Walter-Prototyp
Model #: 5075790
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 2.20470 |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Material Grade | M35 |
| Series/List | 20165 |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Neck Length (mm) | 12.00 |
| Neck Length (Decimal Inch) | 0.4724 |
| Tapping Depth (mm) | 27 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| Material Application | Aluminum; Fiber Reinforced Plastics; Graphite; Non-Ferrous Metals; Plastics |
