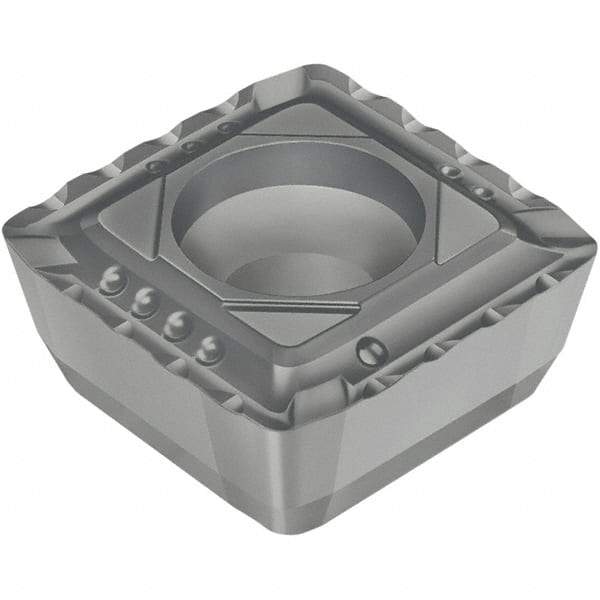

Walter - P4846 E67 Grade WKP35S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 12.24mm Inscribed Circle
Item #: 36289486
Brand: Walter
Model #: 6168949
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 6 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Inscribed Circle (mm) | 12.24 |
| Inscribed Circle (Decimal Inch) | 0.4820 |
| Thickness (mm) | 4.88 |
| Thickness (Decimal Inch) | 0.1920 |
| Corner Radius (mm) | 0.71 |
| Corner Radius (Decimal Inch) | 0.0280 |
| Shape | Square |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E67 |
