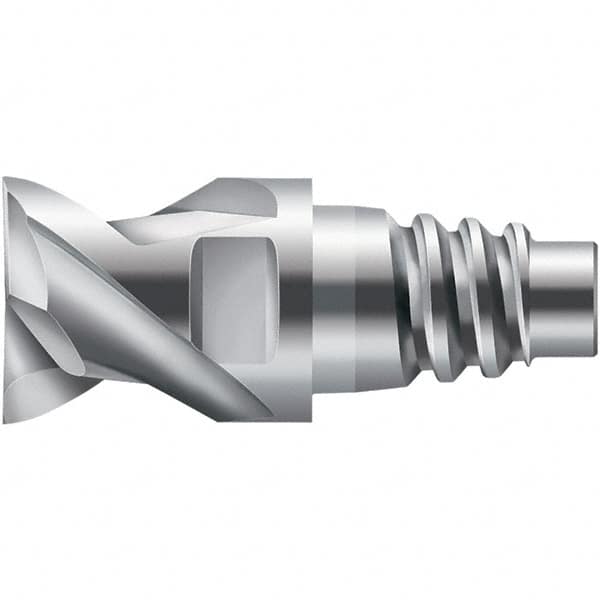

Walter-Prototyp - H6E2511-E10-10 Carbide End Mill Tip Insert
Item #: 36271914
Brand: Walter-Prototyp
Model #: 5627153
Product Specifications
| Series | ConeFit; Protostar AL 45 |
| Milling Tip Style | H6E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 5.50 |
| Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Milling Tip Full Description | Slot/Square Shoulder Milling |
| Coating Process | PVD |
| Extension From Holder (mm) | 12.40 |
| Extension From Holder (Decimal Inch) | 0.4882 |
| Style | H6E2511 |
