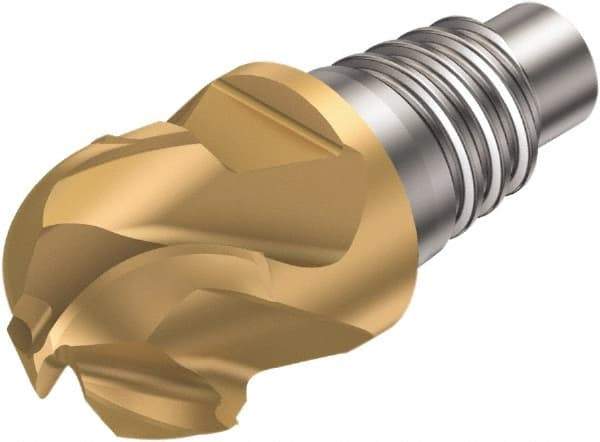

Sandvik Coromant - A316..BM G Grade 1030 Carbide Ball Nose Milling Tip Insert - TiN/TiAlN Finish, 4 Flutes, 25.4mm Cutting Diam, 14mm Depth of Cut, 25.6mm Extension, 1/2" Cnr Rad, 40° Helix
Item #: 36136984
Brand: Sandvik Coromant
Model #: 5856419
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316..BM |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 14.00 |
| Number of Flutes | 4 |
| Coating | TiN/TiAlN |
| Corner Radius (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Coating Process | PVD |
| Chipbreaker | G |
| Extension From Holder (mm) | 25.60 |
| Extension From Holder (Decimal Inch) | 1.0079 |
| Helix Angle | 40 |
| Style | A316..BM..G |
| Manufacturers Catalog Number | A316-25BM440-100CG 1030 |
