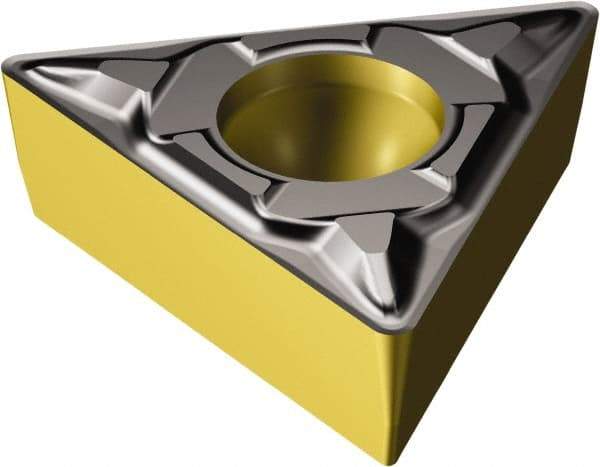

Sandvik Coromant - TCMT1.21.20 KF Grade 3225 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 0.2mm Corner Radius
Item #: 35005156
Brand: Sandvik Coromant
Model #: 6868279
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.21.20 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | KF |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TCMT 06 T1 02-KF 3225 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 6.42 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Shape | Triangle |
