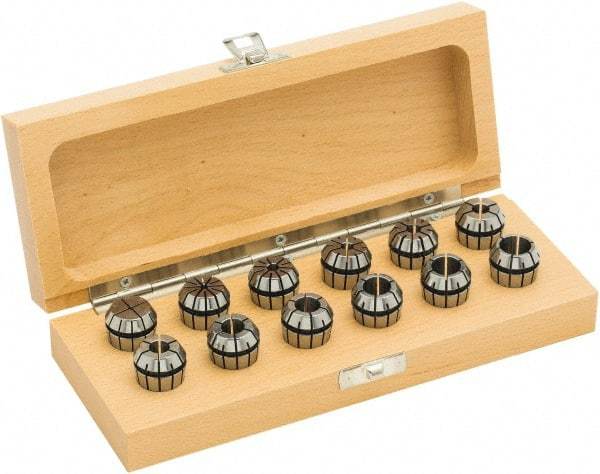

Parlec - 12 Piece, 2mm to 13mm Capacity, ER Collet Set - 0.0002" TIR, Increments of 0.0394", Series ER20
Item #: 33301086
Brand: Parlec
Model #: 5UMER20-SM012
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Number of Pieces | 12 |
| Minimum Collet Capacity (mm) | 2.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Size Increments (Decimal Inch) | 0.0394 |
| Size Increments (mm) | 1.00 |
| TIR (Decimal Inch) | 0.000200 |
| Size 1 (mm) | 2.00; 3.00; 4.00; 5.00; 6.00; 7.00; 8.00; 9.00; 10.00; 11.00; 12.00; 13.00 |
| Size 1 (Decimal Inch) | 0.0787; 0.1181; 0.1575; 0.1969; 0.2362; 0.2756; 0.3150; 0.3543; 0.3937; 0.4331; 0.4724; 0.5118 |
| PSC Code | 5136 |
