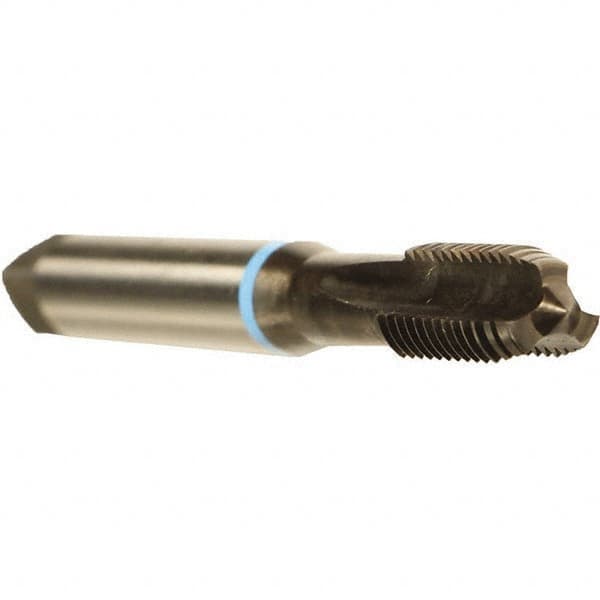

Emuge - M2.5x0.45 Metric Coarse 6HX 3 Flute Nitride Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 50mm OAL, 9mm Thread Length, Oversize
Item #: 33242256
Brand: Emuge
Model #: B0100501.0025
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Nitride is a thin, hard-shell coating that supports the surface hardness of the tool. It is used where abrasive or wearing conditions exist.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 1.96850 |
| Overall Length (mm) | 50.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Neck Length (mm) | 14.00 |
| Neck Length (Decimal Inch) | 0.5512 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Shank Diameter (mm) | 2.80 |
| Shank Length (Decimal Inch) | 1.42 |
| Shank Length (mm) | 36 |
| Square Size (Decimal Inch) | 0.0827 |
| Square Size (mm) | 2.10 |
