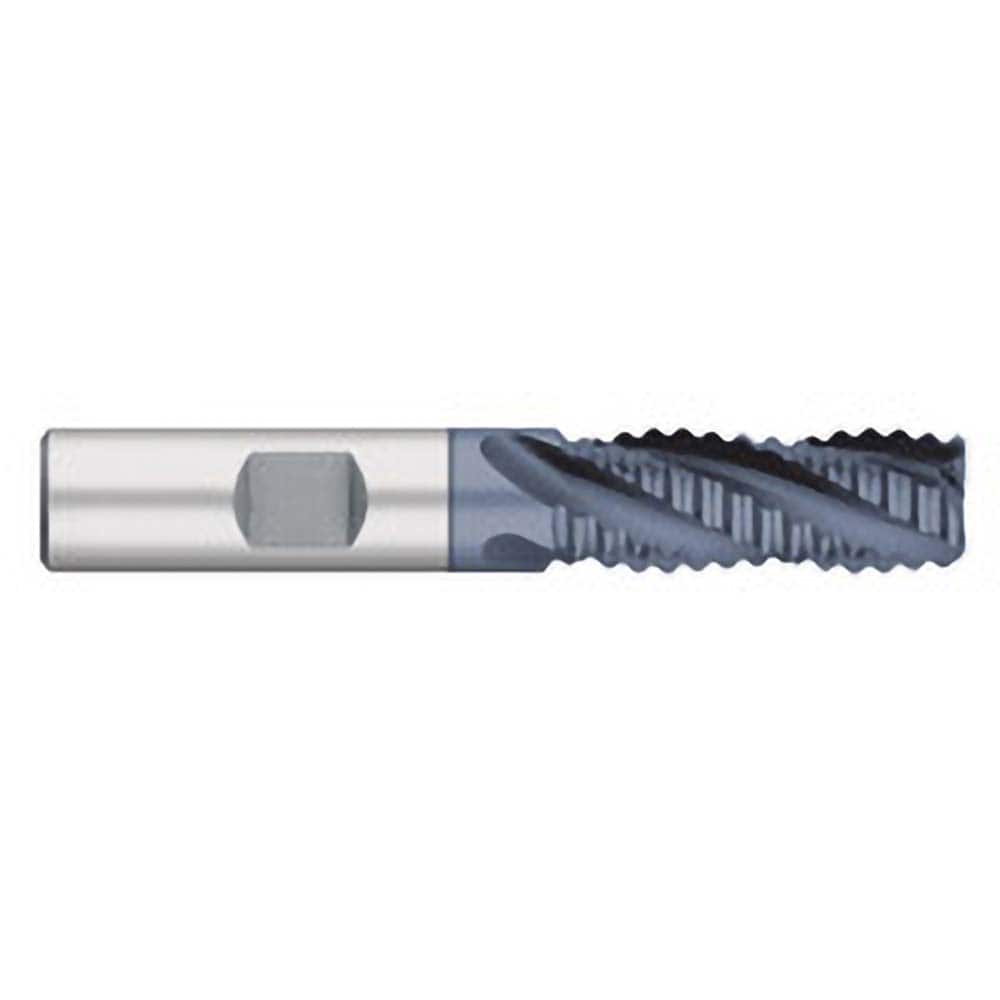

Roughing End Mills; Mill Diameter (Inch): 1/4; Mill Diameter (Decimal Inch): 0.2500; Number of Flutes: 4; Pitch: Coarse; Length of Cut (Inch): 5/8; Length of Cut (Decimal Inch): 0.6250; Shank Diameter (Inch): 0.3750; 3/8; Shank Diameter (mm): 0.3750; Shan
Item #: 33125188
Brand: Titan USA
Model #: TE63504
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 4 |
| Pitch | Coarse |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 0.3750; 3/8 |
| Shank Diameter (mm) | 0.3750 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Material | Cobalt |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-7/16 |
| Centercutting | Center Cutting |
| Helix Angle | 30 |
| Single or Double End | Single; Square |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.4375 |
| Series/List | 826 |
