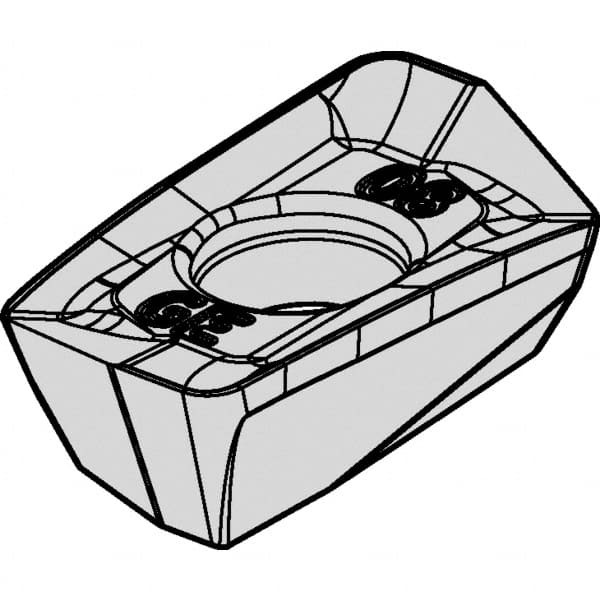

EP1004EHD KCPM40 Carbide Milling Insert TiAlN/AlCrN Finish, 0.474″ Long x 0.148″ Thick x 0.266″ Wide
Item #: 32759458
Brand: Kennametal
Model #: 5545215
Product Specifications
| Insert Style | EP |
| Insert Size | 1004 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCPM40 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Ansi Code | EP1004EHD |
| Iso Code | EDPT10T304PDERHD |
| Rake Angle | 12.00 |
| Chip Breaker | HD |
| Shape | Parallelogram |
| Coating Classification | Kennametal |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.2660 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1480 |
| Length (Decimal Inch - 4 Decimals) | 0.4740 |
