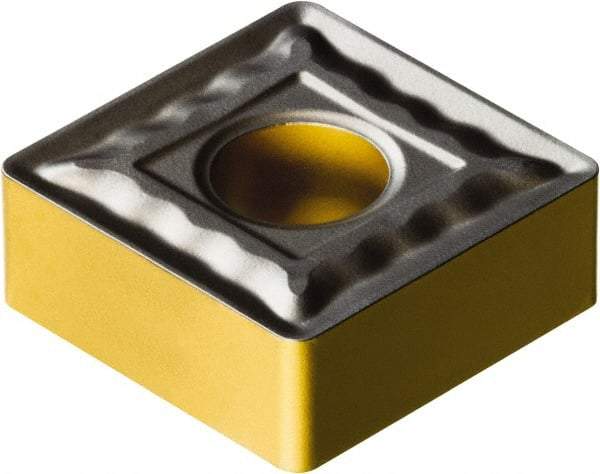

Sandvik Coromant - SNMG543 QM Grade 2220 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 90° Square, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 32606071
Brand: Sandvik Coromant
Model #: 7231537
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | 2220 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | QM |
| ISO Number | SNMG 15 06 12-QM 2220 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
