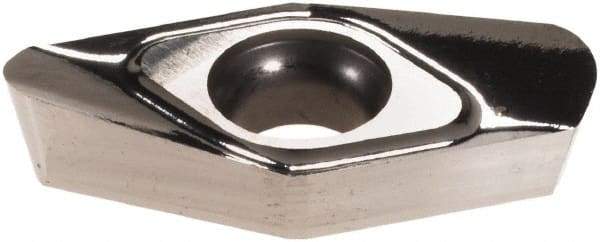

Iscar - HSM90S APCR140532 P Grade IC28 Carbide Milling Insert - Uncoated, 0.2283" Thick, 3.2mm Corner Radius
Item #: 32130494
Brand: Iscar
Model #: 5606647
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HSM90S APCR |
| Insert Size | 140532 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4920 |
| Length (Decimal Inch) | 0.9843 |
| Thickness (Decimal Inch) | 0.2283 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| ISO Number | HSM90S APCR 140532R-P |
