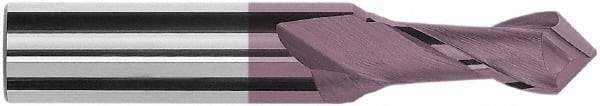

Magafor - 5/8" Diam, 1" LOC, 2 Flute, 90° Point Angle, Solid Carbide Drill Mill - Hard'X Finish, 3-1/8" OAL, 5/8" Shank Diam
Item #: 31205735
Brand: Magafor
Model #: 888090H1587
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Hard X is proprietary coating with AlTiN. It has a high thermic stability and an excellent protection against heat and wear. Ideal for dry machining and high speed cutting in treated steels and dies. It has a high hardness of (3,700 Hv). Hard X is proprietary coating of Magafor.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Point Angle | 90 |
| Number of Flutes | 2 |
| Finish/Coating | Hard'X |
| Overall Length (Inch) | 3-1/8 |
| Material Grade | Micrograin |
| Helix Angle | 30 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | -0.0018/-0.0036 |
