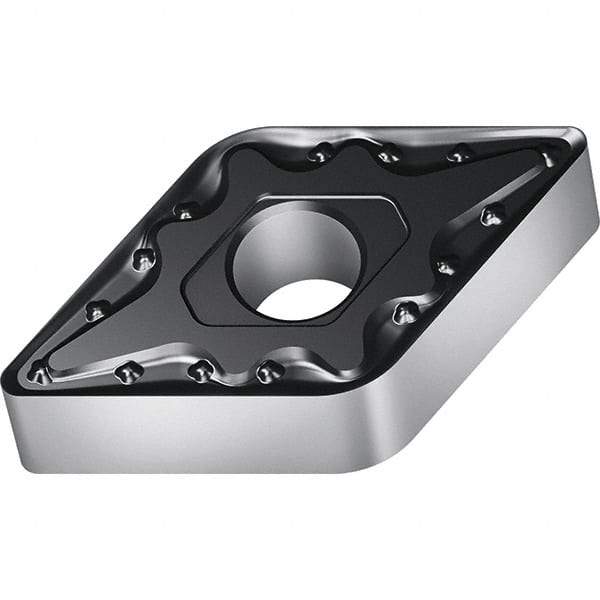

Walter - DNMG331 MM5 Grade WSM10S Carbide Turning Insert - TiALN/Al2O3 Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.016" Corner Radius
Item #: 31005085
Brand: Walter
Model #: 7251934
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WSM10S |
| Coating | TiALN/Al2O3 |
| Chip Breaker | MM5 |
| Insert Length (Decimal Inch) | 0.4580 |
| Overall Length (Decimal Inch) | 0.4580 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMG110404-MM5 WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7251934 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.4580 |
| Cutting Width (mm) | 11.63 |
| Shape | Diamond |
