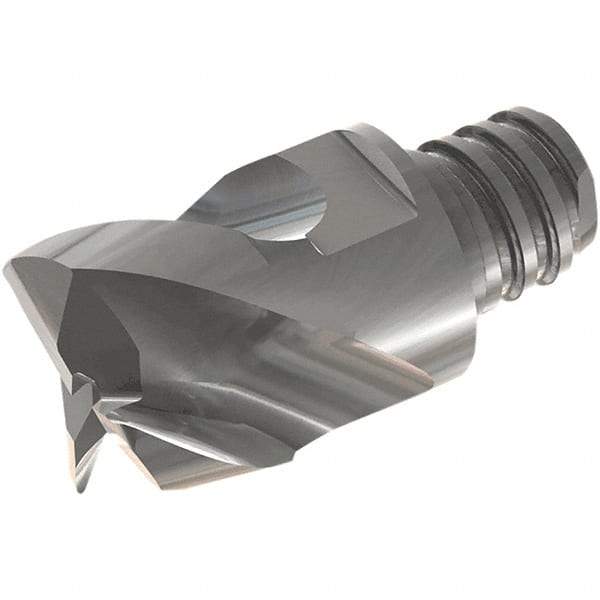

Iscar - MM EB Grade IC908 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 2 Flutes, 5/16" Cutting Diam, 0.2" Depth of Cut, 0.35" Extension, 5/32" Cnr Rad, 30° Helix
Item #: 30730261
Brand: Iscar
Model #: 5622259
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EB |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3120 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.1560 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.3500 |
| Thread Size | T05 |
| Helix Angle | 30 |
| Style | MM EB.312A20-2T05 |
