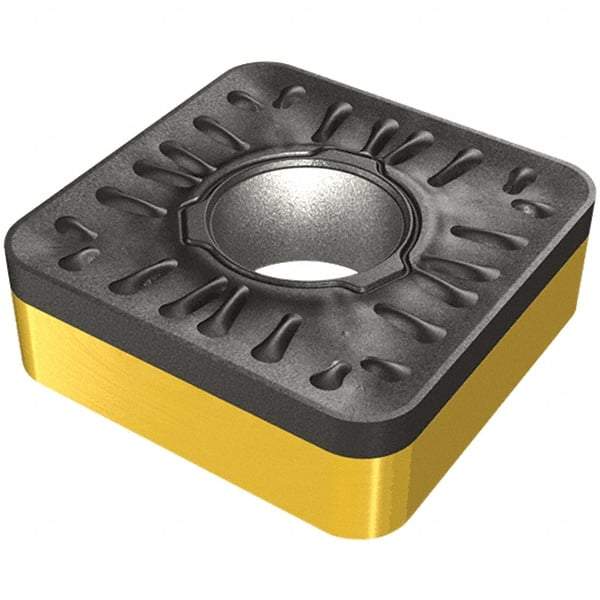

Iscar - SNMM646 R3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiCN/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/32" Corner Radius
Item #: 30727952
Brand: Iscar
Model #: 5566791
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 646 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiCN/TiN |
| Chip Breaker | R3P |
| ISO Number | SNMM 646-R3P |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 11.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Multi Use Application | Facing |
| MultiUseTool | Yes |
| Shape | Square |
