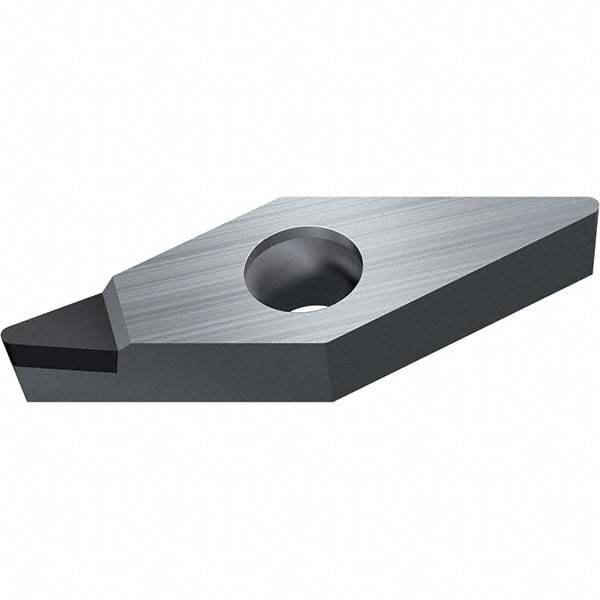

Walter - VCGT FS-1 Grade WDN10 Turning Insert - Polycrystaline Diamond Finish, 35° Rhombic, 9.53mm Inscr Circle, 4.76mm Thick, 0.8mm Corner Radius
Item #: 30353114
Brand: Walter
Model #: 6674559
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WDN10 |
| Coating | Polycrystaline diamond |
| Chip Breaker | FS-1 |
| Insert Length (Decimal Inch) | 0.6540 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.6063 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VCGT160408FS-1 WDN10 |
| Relief Angle | 7 |
| Proprietary Coating Designation | WDN10 |
| Manufacturers Catalog Number | 6674559 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VCGT_FS-1 |
| Maximum Depth of Cut (mm) | 16.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Rhombic 35 |
