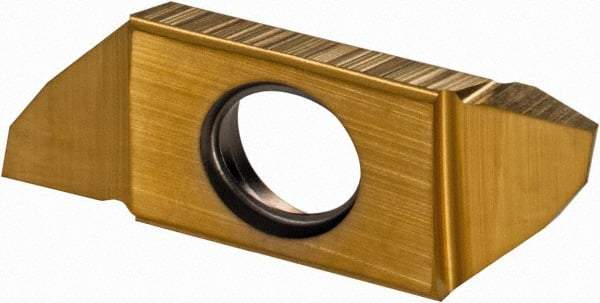

Iscar - SCIR22 Grade IC1008 Carbide Turning Insert - TiN/TiAlN Finish, 90° Irregular, 3mm Thick
Item #: 30080246
Brand: Iscar
Model #: 6405422
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCIR |
| Insert Size | 22 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.1180 |
| Thickness (mm) | 3.00 |
| Manufacturer's Grade | IC1008 |
| Coating | TiN/TiAlN |
| Material Grade | Submicron |
| ISO Number | SCIR 22-ER00-07K0 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | SCIR 22-ER00-07K0 |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Series | Swisscut |
| Maximum Depth of Cut (mm) | 2.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Multi Use Application | Back Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
