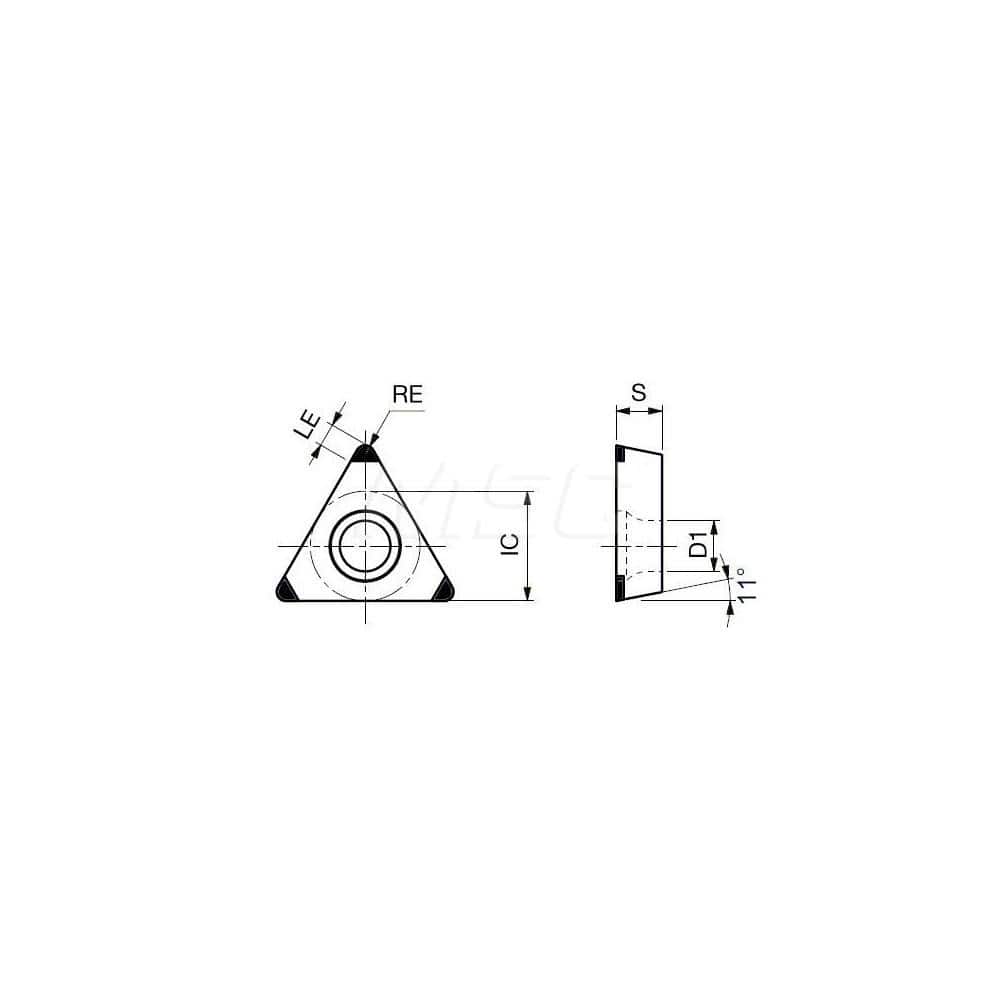

Turning Insert: 3QP-TPGW730.5 BXA40, Polycrystalline Cubic Boron Nitride TiAlN Finish, Neutral, 0.0080″ Corner Radius, 60.0 ° N/A Triangle, Series TPGW
Item #: 20883633
Brand: Tungaloy
Model #: 6853440
Product Specifications
| Insert Style | TPGW |
| Insert Size Code | 730.5 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA40 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 3QPTPGW730.5BXA40 |
| Iso Code | 3QP-TPGW090202 BXA40 |
| Chip Breaker | FT-CBN |
| Coating/Finish | TiAlN |
