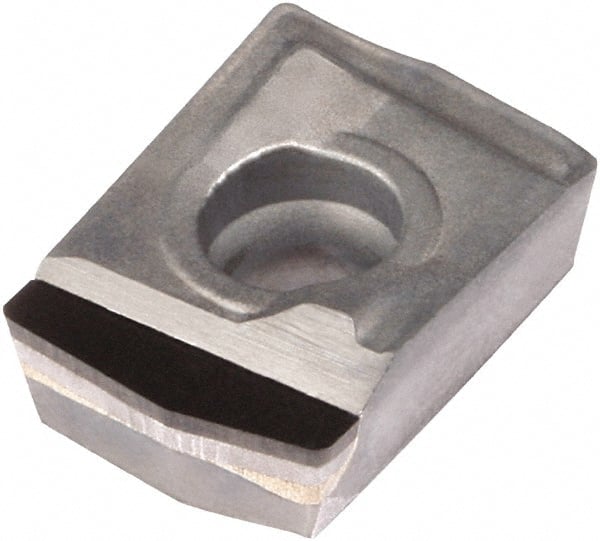

Kennametal - DFR040304 ST Grade KD1425 Diamond Tipped Indexable Drill Insert
Item #: 53409504
Brand: Kennametal
Model #: 4115401
Features and Benefits
Diamond-tips are one of the hardest cutting materials and are commonly brazed onto a carbide insert or tool. They can be used at high cutting speeds on non-ferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | DFR |
| Insert Size | 040304 |
| Material | Diamond Tipped |
| Manufacturer's Grade | KD1425 |
| Length (mm) | 10.49 |
| Length (Decimal Inch) | 0.4130 |
| Width (Decimal Inch) | 0.2910 |
| Width (mm) | 7.39 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Relief Angle | 8 |
| Coating | Uncoated |
| Chipbreaker | ST |
