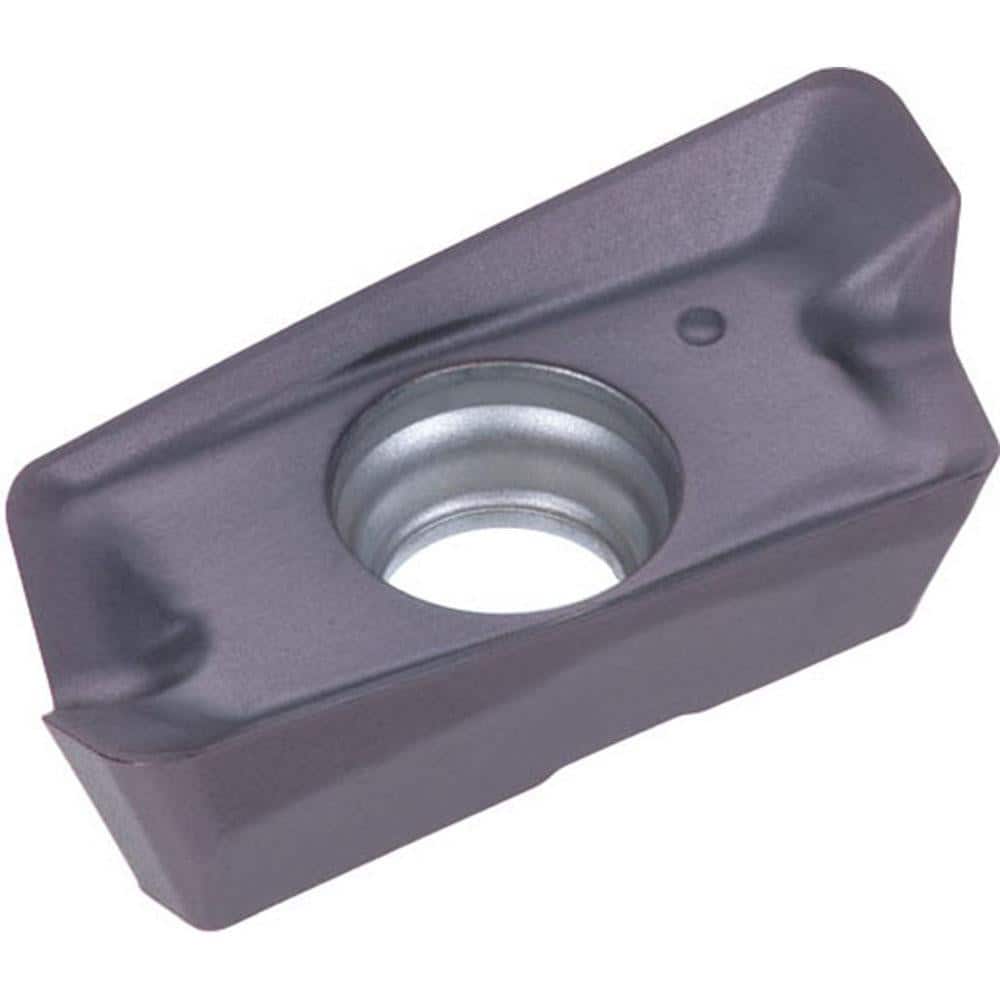

Milling Insert: AH3225, Solid Carbide N/A Finish,
Item #: 19882455
Brand: Tungaloy
Model #: 6776652
Product Specifications
| Insert Style | AVMT |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3225 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Insert Hand | Right Hand |
| Series | AVMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4130 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4370 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Chip Breaker | MM |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1340 |
