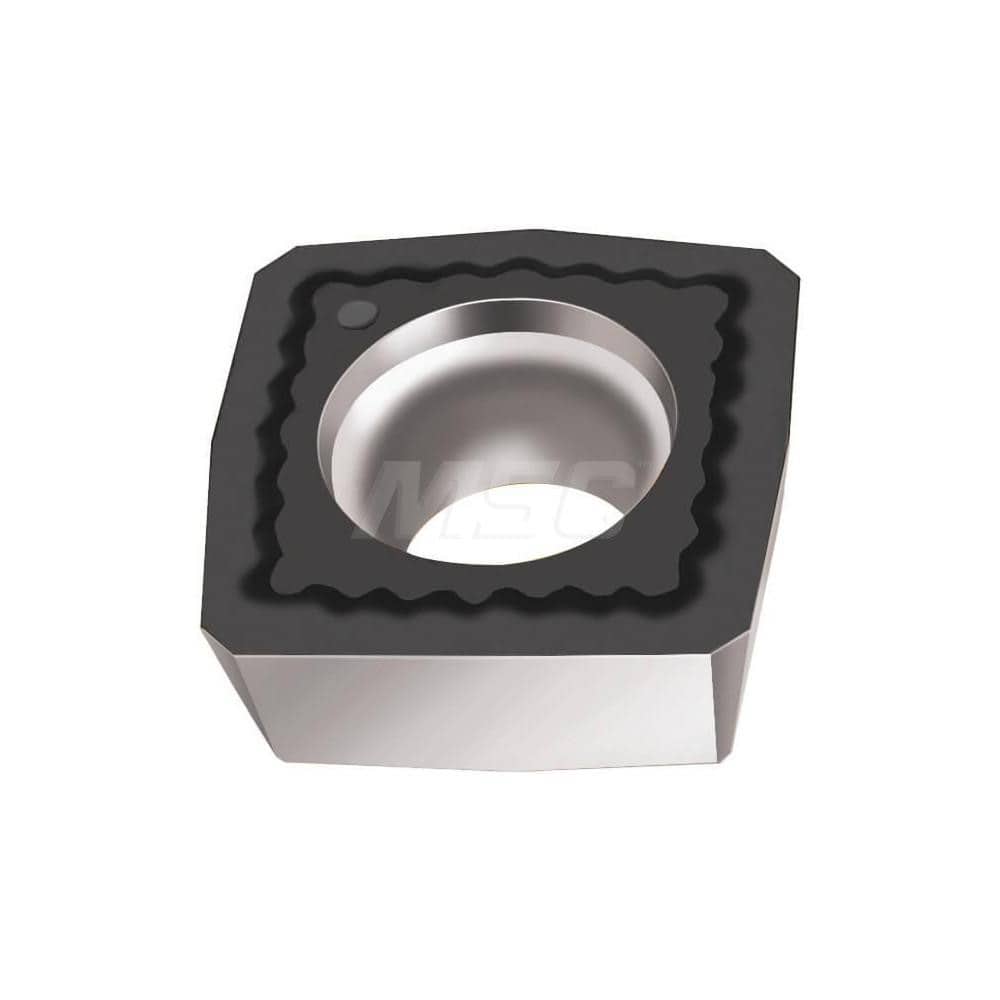

Indexable Drill Insert: P28428A57 WKP35S, Carbide Coated, 96 ° Square
Item #: 18488130
Brand: Walter
Model #: 6863904
Product Specifications
| Insert Style | P284 |
| Insert Size Code | 28 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP35S |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Cutting Direction | Right Hand |
| Chipbreaker | A57 |
| Coating Process | CVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | P2841S-3N-A57 WKP35S |
| Standards | ISO; ANSI |
| Width (Mm - 2 Decimals) | 9.52 |
| Width (Decimal Inch - 4 Decimals) | 0.3800 |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
| Included Angle Degree | 96 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | Coated |
