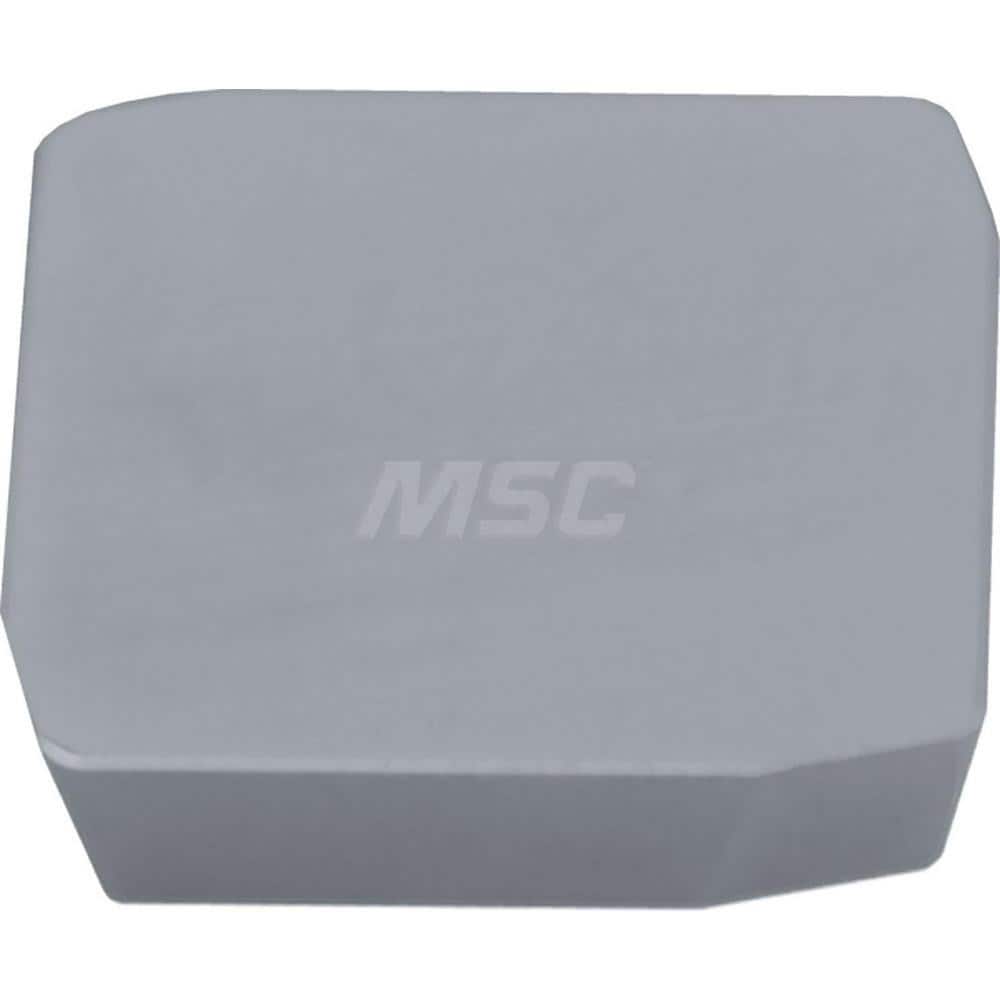

Kyocera SPK 42EDFR KW10 Grade Uncoated Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (S) Titanium Alloy
Item #: 18254862
Brand: Kyocera
Model #: TWE00810
Product Specifications
| Insert Style | SPK |
| Insert Size | 42 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | KW10 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Insert Hand | Right Hand |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Ansi Code | SPK42EDFRKW10 |
| Iso Code | SPKN1203EDFR |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | SPK42EDFRKW10 |
| Cutter Series Compatibility | MSP |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating/Finish | WC/Co |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
