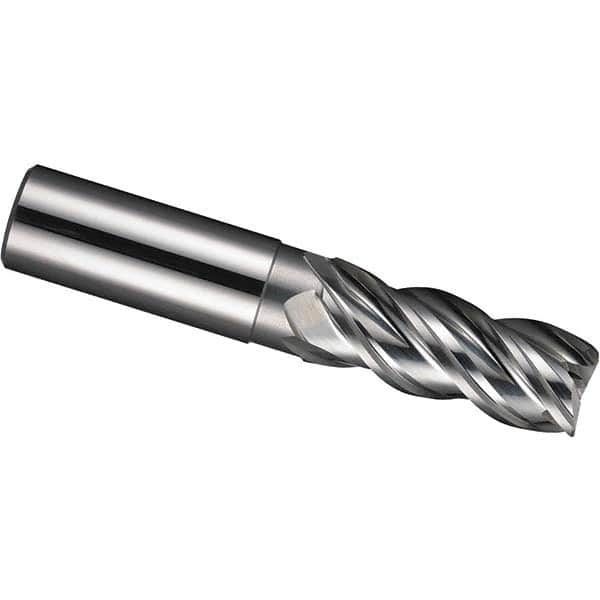

SGS - 3/4" Diam 4 Flute Solid Carbide 0.06" Corner Radius End Mill
Item #: 16910986
Brand: SGS
Model #: 34029
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.060 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 5-3/8 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 41 |
| Variable Index | No |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 41 |
| Maximum Helix Angle | 41 |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.060/-0.060 |
| Shank Type | Round |
| PSC Code | 3455 |
| Series/List | APF |
