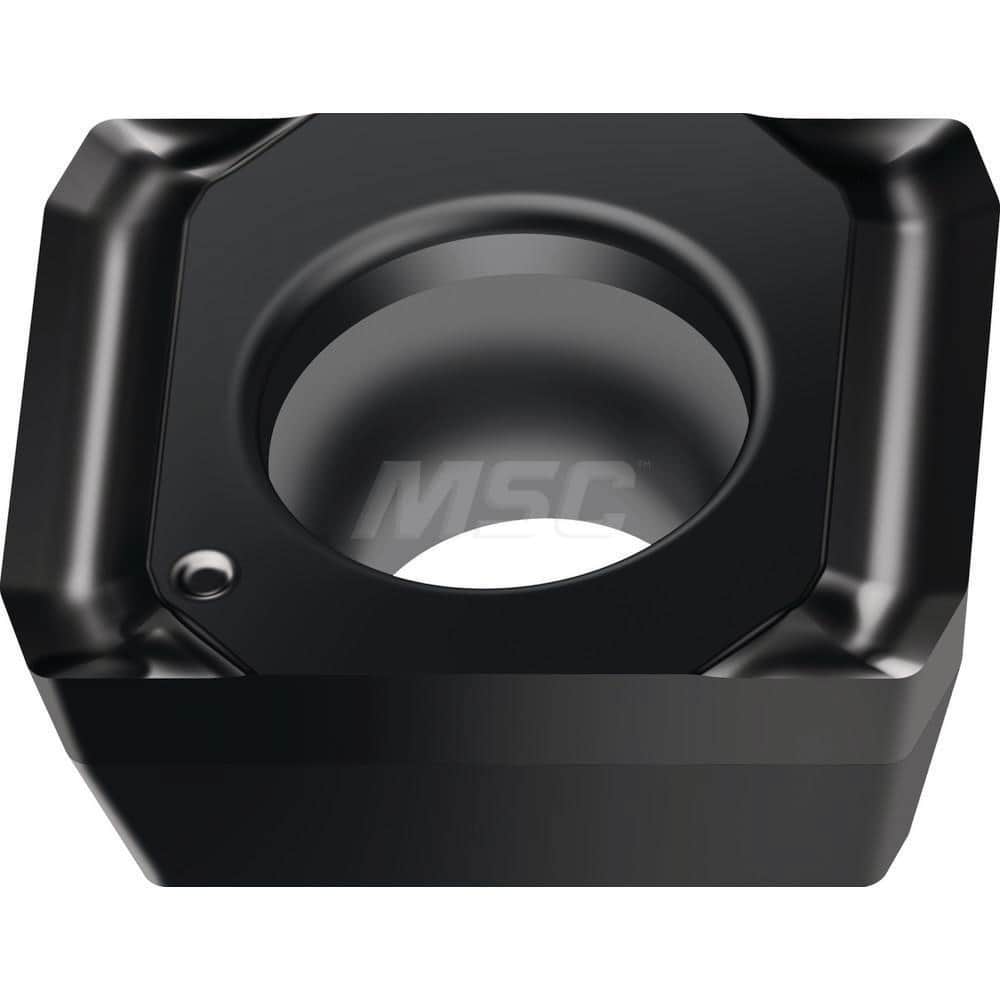

Indexable Drill Insert: LCGX06T204E77 WNN15, Carbide Coated, 90 ° Rectangle
Item #: 16278970
Brand: Walter
Model #: 8087904
Product Specifications
| Insert Style | LCGX |
| Insert Size Code | 06T204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WNN15 |
| Thickness (mm) | 2.78 |
| Inscribed Circle (mm) | 5.20 |
| Cutting Direction | Right Hand |
| Chipbreaker | E77 |
| Series | LCGX |
| Coating Process | PVD |
| Shape | Rectangle |
| Number Of Cutting Edges | 2 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | LCGX06T204-E77 |
| Iso Code | LCGX06T204-E77 |
| Width (Mm - 2 Decimals) | 5.00 |
| Width (Decimal Inch - 4 Decimals) | 5.0000 |
| Included Angle Degree | 90.00 |
| Coating/Finish | Coated |
