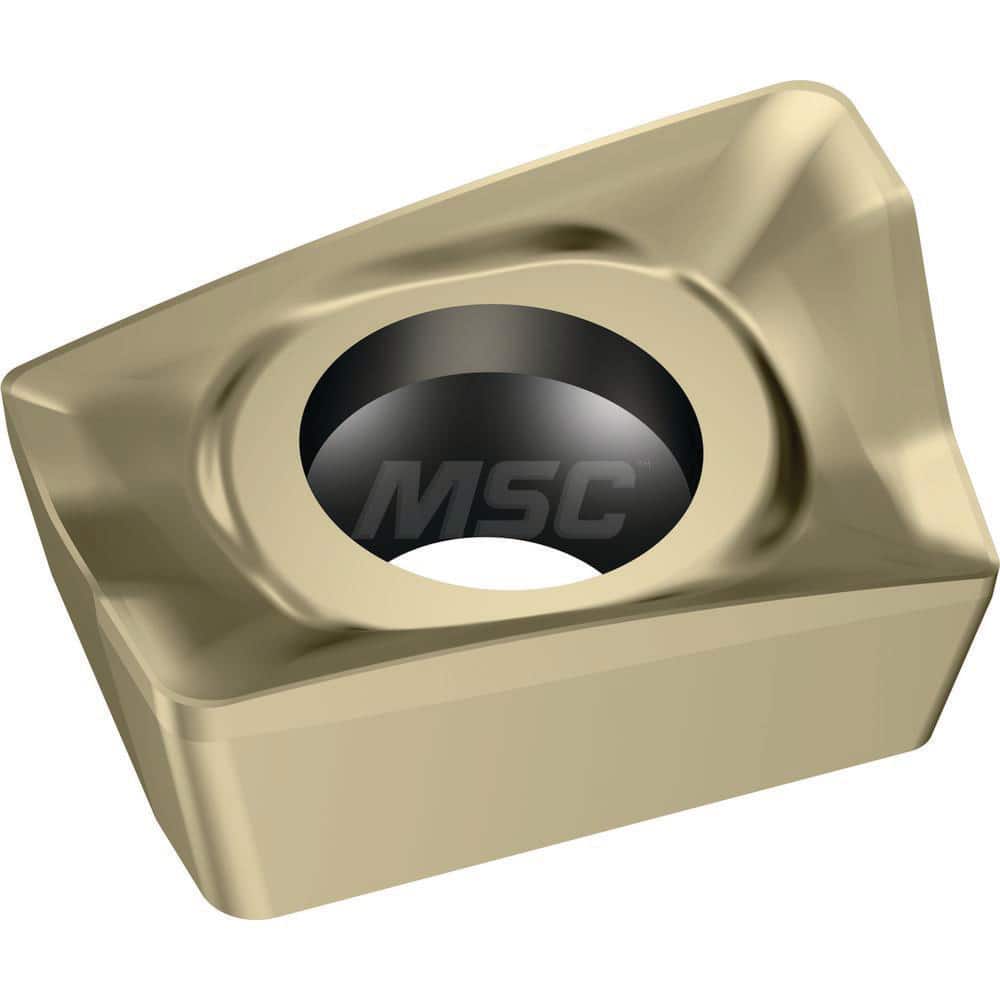

Milling Insert: ACMT060204R-K55 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16278681
Brand: Walter
Model #: 8112764
Product Specifications
| Insert Style | ACMT |
| Insert Size Code | 06 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.1730 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Right Hand |
| Relief Angle | 7.00 |
| Series | ACMT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (mm) | 6.70 |
| Insert Shape | Parallelogram |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ACMT060204R-K55 WSP45G |
| Chip Breaker | K85 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0940 |
